PRODUCT PORTFOLIO
Compact device
The IF Design award-winning device is perfectly suited for the most common locations that can occur in a factory or warehouse. The compact device has 4 built in cameras. A built-in led panel on each side gives feedback to the traffic participants in two colors. The built-in buzzer is an additional safety feature.
specifications
- IP Rating: 42
- Detection Angle: 50°
- Detection range: 20 m
- Temperature range: 0-40 C°
- Power consumption: 86 W
- Power supply: 230 VAC
- Operating voltage: 48VDC

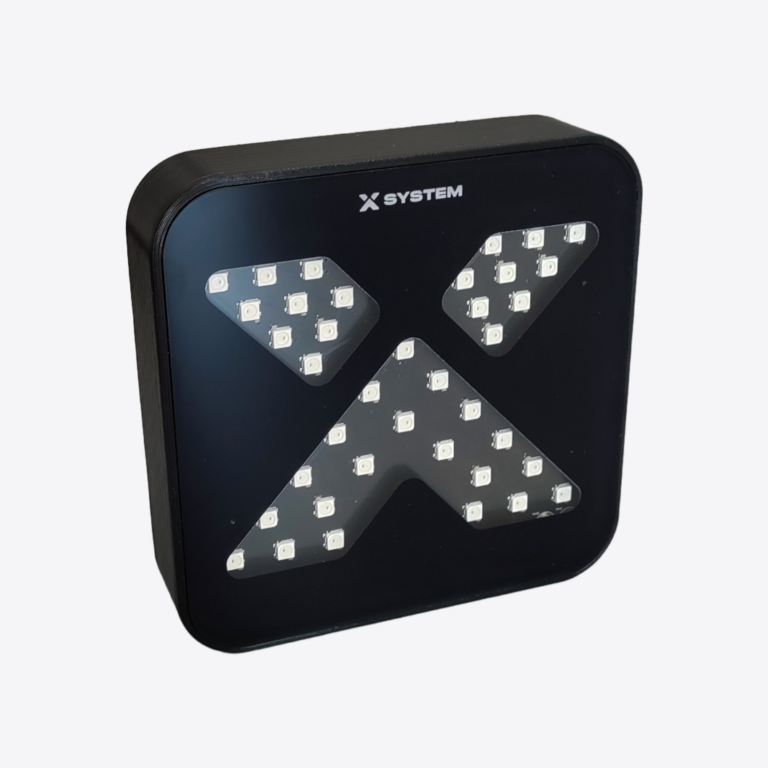

Auxiliary light
The purpose of the external light is to increase visibility. The red and green signals of the light are clearly visible to road users.
The built-in sounder further increases detection
specifications
- Unit weight: 500 g
- Dimension in mm: 135x135x88 mm
- Mounting bracket size: Vesa 75×75
- Temperature range: 0-40 C°
- Operating voltage: 48VDC
- IP Rating: 42

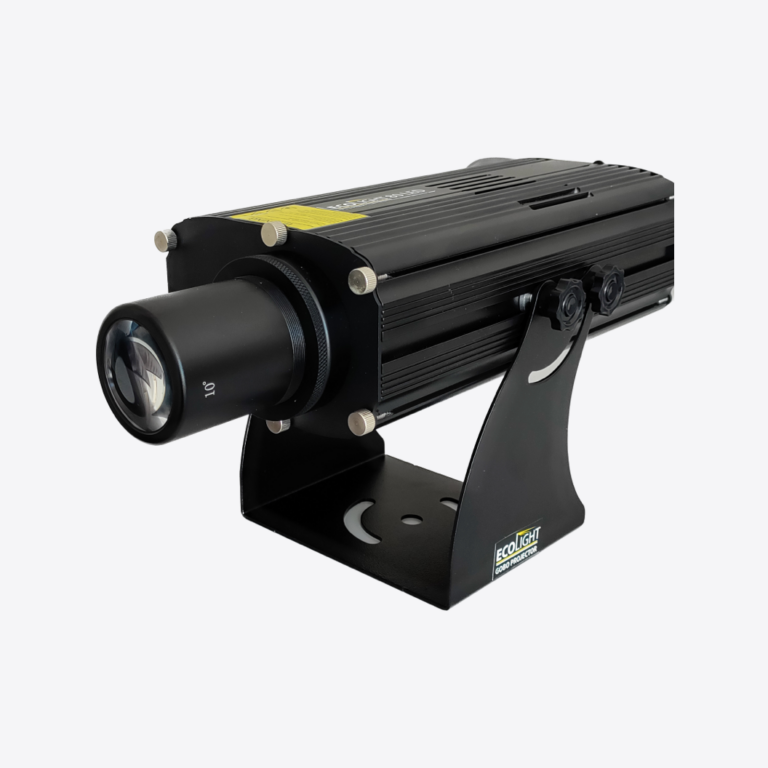

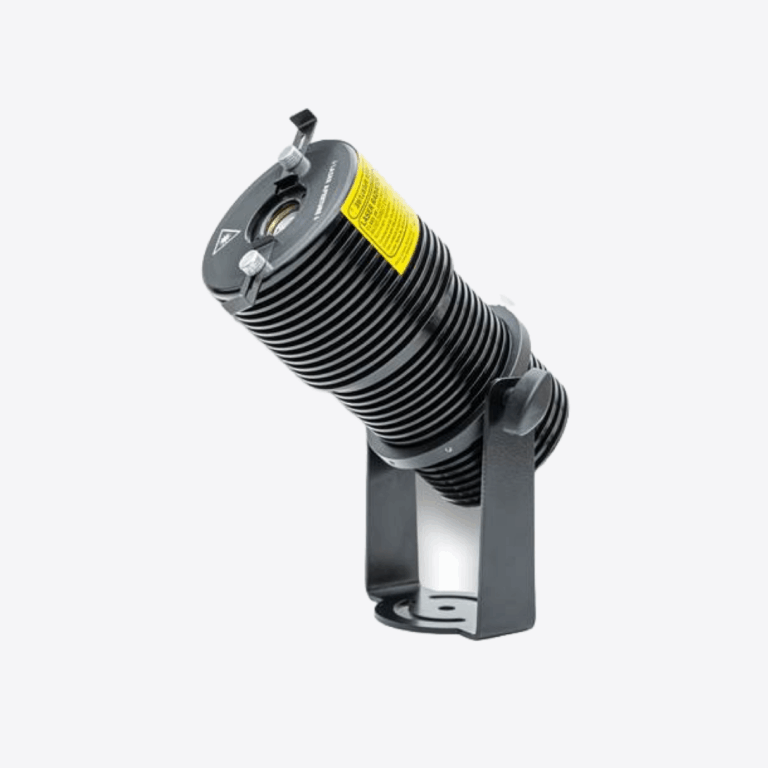

Projectors
Projectors can be used to project various signs onto the floor.
Our projector product line consists of several sizes and performance categories. Various pictograms are available.
specifications
- Weight: 4kg
- Unit size cm (LxWxH): 33x18x20
- Average life: 40 000 Hrs
- Cooling: active
- Installation conditions: Indoor
- IP protection: IP20
- Power consumption: 45 W

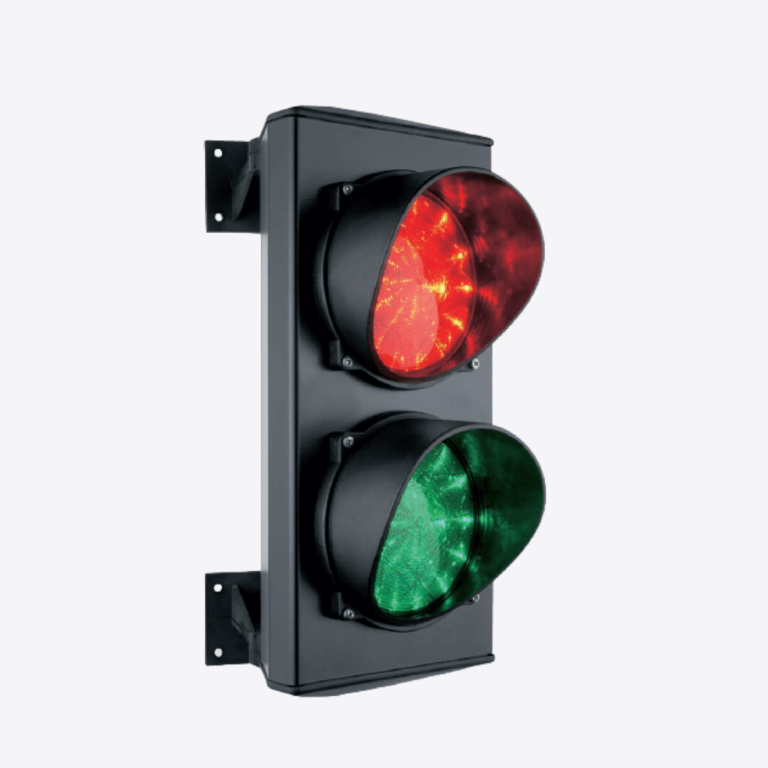

Traffic light
There are also several models of traffic lights available.
specifications
- Power supply: 230 or 24 V
- Power: 70 W
- Working temperatures: -30 + 70 °C
- IP Protection: IP 65

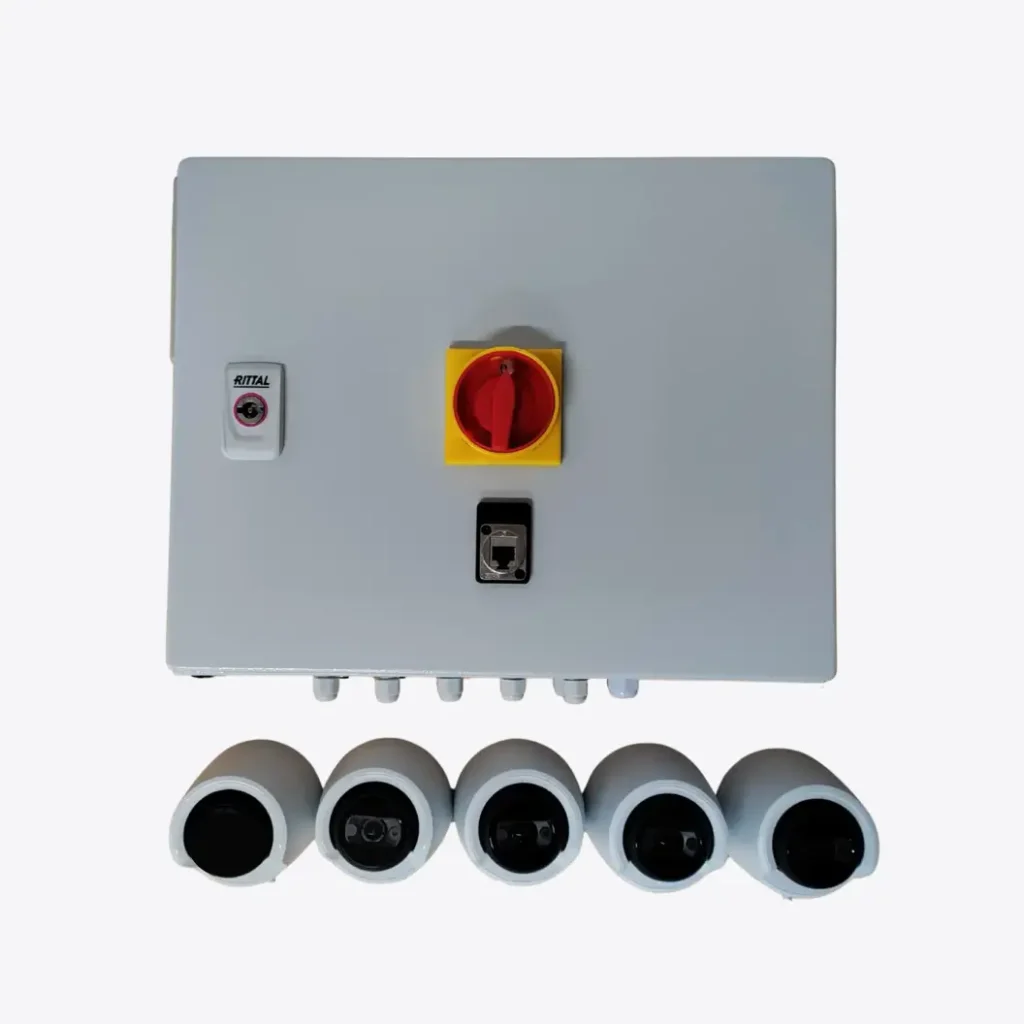

Modular system
A modular system means that the system is built from modules. Modular system can include up to 5 cameras, 10 auxiliary lights, 4 projectors, 2 speakers. Other external devices such as traffic lights can be connected to the modular system.
The cameras and operated equipment can be placed independently of each other. The operation of the system is controlled by a central computer, which is integrated into the switch cabinet. The modular system can be used to solve more complex problems and in cases where the compact device is not suitable for solving the task for some reason.
